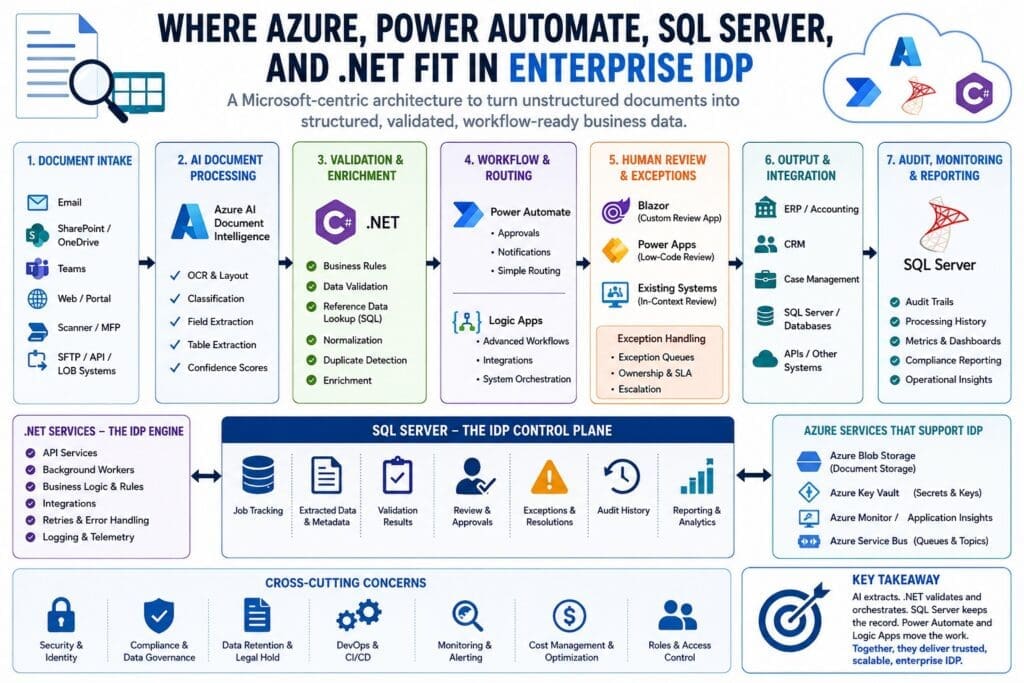

Where Azure, Power Automate, SQL Server, and .NET Fit in Enterprise IDP

Intelligent Document Processing is often discussed as if it were one tool.

That is the wrong way to think about it.

In real enterprise environments, IDP is not just one AI service, one workflow tool, one database, or one application. It is a system that turns messy, unstructured documents into structured, validated, workflow-ready business data.

For Microsoft-centric organizations, that usually means several technologies working together:

• Azure AI Document Intelligence for OCR, document analysis, classification, and extraction
• Power Automate or Logic Apps for workflow orchestration, approvals, notifications, and connectors
• SQL Server for job tracking, extracted data, validation status, audit history, and reporting
• C# and .NET for business rules, validation, custom logic, integrations, worker services, and production-grade application development

The important point is this:

Enterprise IDP is not simply “send a document to AI and get data back.” It is an architecture.

That architecture has to handle document intake, classification, extraction, validation, enrichment, human review, exception handling, auditability, workflow routing, integration, monitoring, cost control, and long-term support.

That matches the broader IDP framework: IDP is not just OCR. It is the scalable, cost-conscious conversion of unstructured inputs into structured, validated, workflow-ready business data.

This article explains where Azure, Power Automate, SQL Server, and .NET fit in enterprise IDP, and how Microsoft-centric organizations should think about building practical, production-ready document processing systems.

The Blunt Reality: No Single Tool Owns Enterprise IDP

A common mistake is trying to force the entire IDP process into one platform.

That usually creates problems.

Azure AI Document Intelligence is excellent for document analysis, but it should not own every business rule.

Power Automate is useful for workflow and approvals, but it should not become a dumping ground for complex enterprise logic.

SQL Server is excellent for structured data, auditability, and reporting, but it does not extract meaning from unstructured documents by itself.

C# and .NET are excellent for custom business logic, integrations, services, APIs, and enterprise application development, but they should not replace AI services where AI is clearly better.

The right question is not:

Which tool should we use for IDP?

The better question is:

Which tool should own each responsibility in the IDP architecture?

That is where Microsoft-centric organizations have an advantage. They often already have the people, systems, databases, applications, identity infrastructure, and operational experience to build IDP as an extension of their enterprise environment instead of treating it as an isolated AI experiment.

A Practical Enterprise IDP Workflow

Before assigning technologies, it helps to understand the workflow.

A production IDP system usually includes these stages:

1. Document intake
2. Job registration
3. OCR and document analysis
4. Document classification
5. Field and table extraction
6. Confidence scoring
7. Data normalization
8. Business validation
9. Database enrichment
10. Human review
11. Exception handling
12. Workflow routing
13. Structured output
14. Downstream integration
15. Audit logging
16. Monitoring and reporting

This aligns with the monthly content calendar’s Week 2 and Week 4 structure, which treats IDP as a real enterprise workflow rather than a simple OCR feature. The calendar specifically calls out intake, OCR, classification, extraction, validation, enrichment, human review, workflow routing, auditability, Azure AI Document Intelligence, Power Automate, Logic Apps, SQL Server, C#, .NET, Blazor, Power Apps, infrastructure, security, DevOps, and legal as part of the enterprise IDP discussion.

Now the practical question becomes: where does each Microsoft technology fit?

Where Azure AI Document Intelligence Fits

Azure AI Document Intelligence is typically the AI extraction layer.

Its primary job is to help convert unstructured or semi-structured document content into machine-readable data.

In an IDP architecture, Azure AI Document Intelligence can help with:

• OCR
• Layout analysis
• Document structure detection
• Key-value pair extraction
• Table extraction
• Form recognition
• Prebuilt model usage
• Custom model usage
• Document classification
• Confidence scoring
• Field extraction from invoices, receipts, forms, contracts, and other document types

This is where AI adds obvious value.

Traditional software can parse structured data very well, but it struggles with messy PDFs, scanned images, form variations, vendor-specific layouts, inconsistent document formats, and tables embedded inside documents.

Azure AI Document Intelligence is useful because it can produce candidate structured data from document content that would otherwise require manual review or custom parsing logic.

But the word candidate matters.

Azure AI Document Intelligence should usually not be treated as the final authority.

It extracts likely values.

The business system still needs to decide whether those values are valid, complete, trustworthy, and ready for downstream use.

What Azure AI Document Intelligence Should Own

Azure AI Document Intelligence is a strong fit for:

IDP Responsibility	Fit
OCR	Strong fit
Layout analysis	Strong fit
Field extraction	Strong fit
Table extraction	Strong fit
Document classification	Strong fit
Confidence scoring	Strong fit
Prebuilt document models	Strong fit
Custom extraction models	Strong fit
Business rule enforcement	Limited fit
Workflow ownership	Limited fit
Enterprise audit system	Limited fit
Complex integration logic	Limited fit

The mistake is not using Azure AI Document Intelligence.

The mistake is expecting it to be the entire IDP system.

It is the document intelligence layer, not the full enterprise workflow layer.

Where Power Automate Fits in Enterprise IDP

Power Automate is useful when the IDP process needs workflow automation, approvals, notifications, and integration with Microsoft 365 or common business applications.

In enterprise IDP, Power Automate can help with:

• Triggering a workflow when a document is uploaded
• Moving files between SharePoint, OneDrive, Teams, or other locations
• Sending approval requests
• Notifying reviewers
• Updating Microsoft 365 lists or records
• Routing documents based on basic conditions
• Connecting to supported business systems
• Creating lightweight workflows for business users
• Supporting human approval steps
• Automating follow-up actions after review

Power Automate is especially useful for departmental workflows and business-user-friendly automation.

For example, a department might use Power Automate to detect when a document appears in a SharePoint folder, call an IDP process, notify a reviewer if validation fails, and then send the approved data to another system.

That can be very practical.

But there are limits.

Power Automate is not always the right place for complex, high-volume, highly customized, heavily audited, performance-sensitive, or deeply integrated enterprise logic.

What Power Automate Should Own

Power Automate is a strong fit for:

IDP Responsibility	Fit
Notifications	Strong fit
Simple approvals	Strong fit
Microsoft 365 workflow triggers	Strong fit
SharePoint and Teams-based routing	Strong fit
Simple conditional workflow	Strong fit
Business-user automation	Strong fit
Complex validation logic	Limited fit
High-volume orchestration	Depends on scale and licensing
Long-running custom state management	Limited fit
Complex exception queues	Limited fit
Deep custom integrations	Depends on connector/API support

Power Automate works best when the workflow is understandable, connector-friendly, and not overloaded with complex business logic.

The practical rule:

Use Power Automate for workflow steps that business users and administrators should understand. Use .NET for complex logic that needs professional software engineering.

Where Logic Apps Fit

Power Automate and Logic Apps overlap, but they are not the same in enterprise architecture.

Power Automate is often more business-user oriented.

Logic Apps is often more IT, integration, and enterprise workflow oriented.

Logic Apps may be a better fit when the IDP process needs:

• More enterprise-grade integration workflows
• API orchestration
• B2B or system-to-system workflows
• More explicit DevOps handling
• Infrastructure-as-code support
• More controlled deployment patterns
• Integration with Azure services
• Backend workflow automation

For many IDP systems, the choice is not Power Automate versus Logic Apps in absolute terms.

The choice depends on ownership, complexity, volume, governance, licensing, deployment, and who will maintain the workflow.

A departmental workflow may fit Power Automate.

An enterprise integration workflow may fit Logic Apps.

A custom high-volume processing pipeline may fit .NET services and queues better than either one.

Where SQL Server Fits in Enterprise IDP

SQL Server is often underrated in IDP discussions.

That is a mistake.

For Microsoft-centric enterprises, SQL Server can be the control plane for the IDP system.

It can track what happened, what is happening, what failed, what was approved, what was changed, and what was sent downstream.

In production IDP, SQL Server can store:

• Document job records
• Source metadata
• Intake timestamps
• Processing status
• Document type
• Extracted fields
• Confidence scores
• Normalized values
• Validation results
• Business rule outcomes
• Reference data matches
• Human review status
• Reviewer corrections
• Exception records
• Retry counts
• Audit events
• Integration results
• Final output records
• Reporting metrics

This matters because enterprise IDP needs state.

A document does not simply go from upload to completion in one magical step.

It moves through stages.

Each stage needs status tracking.

Each failure needs visibility.

Each correction needs history.

Each final output needs traceability.

SQL Server is excellent for that.

SQL Server as the IDP Control Plane

A good IDP architecture usually needs a persistent control plane.

That control plane answers questions like:

• What documents are currently processing?
• Which documents failed validation?
• Which documents are waiting for review?
• Which exceptions are aging?
• Which documents were completed?
• Which fields were corrected?
• Which validation rules fail most often?
• Which document types have the highest exception rate?
• Which downstream integrations are failing?
• How many documents were processed this week?
• What was the straight-through processing rate?
• What is the average review time?
• What is the audit history for this document?

SQL Server is a natural fit for this layer because it provides structured storage, relational integrity, queryability, reporting support, transaction handling, security integration, and familiarity for Microsoft development teams.

This is why the monthly content plan explicitly includes “Why SQL Server Still Matters in IDP Architectures” as a Week 4 short video topic.

That topic matters because some AI discussions act as if traditional databases are suddenly irrelevant.

They are not.

In production IDP, SQL Server may be one of the most important parts of the architecture.

What SQL Server Should Own

SQL Server is a strong fit for:

IDP Responsibility	Fit
Job status tracking	Strong fit
Extracted structured data	Strong fit
Validation results	Strong fit
Exception records	Strong fit
Audit history	Strong fit
Review workflow state	Strong fit
Reporting and metrics	Strong fit
Reference data lookups	Strong fit
Transaction history	Strong fit
OCR and AI extraction	Not a fit
UI workflow	Not the primary fit
Document storage	Depends on architecture

SQL Server should not be used as a dumping ground for everything.

Large document files may belong in blob storage, SharePoint, document management systems, or other storage platforms depending on the organization.

But SQL Server is usually a strong place to store structured state, extracted values, validation outcomes, and audit data.

Where C# and .NET Fit in Enterprise IDP

C# and .NET are where many Microsoft-centric organizations can create real competitive advantage.

AI services can extract data.

Workflow tools can route tasks.

SQL Server can store state.

But custom business rules, integrations, validation logic, exception handling, worker services, APIs, and enterprise application behavior often fit best in .NET.

In enterprise IDP, .NET can handle:

• Document processing services
• Queue workers
• API endpoints
• Validation rules
• Data normalization
• Business rule execution
• Reference data enrichment
• Duplicate detection
• Routing decisions
• Retry logic
• Error handling
• Integration with ERP, CRM, case management, and internal systems
• Custom review applications
• Blazor-based reviewer interfaces
• Background services
• Scheduled processing
• Security integration
• Logging and telemetry
• Unit tests and automated testing
• CI/CD-friendly application development

This is where IDP becomes real enterprise software.

The monthly map emphasizes that custom C# and .NET add value in Microsoft-centric enterprise IDP.

That is exactly right.

The value is not simply writing code for the sake of writing code.

The value is using professional software engineering where custom logic, reliability, maintainability, and integration depth matter.

What .NET Should Own

C# and .NET are strong fits for:

IDP Responsibility	Fit
Business validation	Strong fit
Custom rules	Strong fit
Data normalization	Strong fit
Integration logic	Strong fit
Queue workers	Strong fit
Retry handling	Strong fit
Exception processing	Strong fit
API services	Strong fit
Custom review interfaces	Strong fit
Security-aware application logic	Strong fit
Unit-tested business logic	Strong fit
AI model extraction itself	Usually not the primary fit
Simple approval notifications	Often Power Automate fits better

The practical rule:

Use .NET where logic needs to be explicit, testable, versioned, secure, scalable, and maintainable.

That includes much of production IDP.

Why .NET Matters More Than Many IDP Vendors Admit

Many IDP platforms are sold as if configuration alone can solve the problem.

Sometimes configuration is enough.

Often, it is not.

Medium to large organizations and government entities usually have:

• Existing systems
• Custom business rules
• Legacy databases
• Security requirements
• Compliance requirements
• Department-specific workflows
• Edge cases
• Complex approvals
• Custom integrations
• Reporting needs
• Operational support requirements

These environments rarely fit perfectly into a generic tool.

That does not mean IDP platforms are useless.

It means the platform needs to be integrated into the enterprise.

For Microsoft-centric organizations, .NET is often the best glue.

C# and .NET can connect the AI extraction layer, SQL Server state layer, workflow layer, human review layer, and downstream business systems.

This is one reason many teams overpay or overcomplicate IDP when they try to solve every problem inside the AI platform or low-code workflow tool.

Some parts should be AI.

Some parts should be workflow automation.

Some parts should be database design.

Some parts should be custom software.

The architecture should reflect that.

A Practical Microsoft Enterprise IDP Architecture

A practical Microsoft-centric enterprise IDP architecture might look like this:

1. Document Intake

Documents arrive from:

• Email
• SharePoint
• OneDrive
• Teams
• Scanner
• Upload portal
• API
• SFTP
• Existing line-of-business application
• Document management system

Power Automate, Logic Apps, .NET services, or existing systems may handle intake depending on the source.

2. Job Registration

A new processing job is created.

SQL Server stores:

• Document ID
• Source
• File location
• Received timestamp
• Current status
• Processing stage
• Document owner
• Correlation ID
• Initial metadata

This gives the IDP system a durable record before processing begins.

3. AI Document Processing

Azure AI Document Intelligence performs:

• OCR
• Layout analysis
• Classification
• Field extraction
• Table extraction
• Confidence scoring

The results are stored in SQL Server as candidate extracted data.

4. Validation and Enrichment

C#/.NET services validate extracted data against:

• Required fields
• Field formats
• SQL Server reference tables
• Vendor records
• Customer records
• Employee records
• Purchase orders
• Case records
• Policy rules
• Duplicate checks
• Transaction thresholds
• Compliance requirements

This step turns extracted data into evaluated business data.

5. Routing Decision

The system determines what happens next:

• Straight-through processing
• Human review
• Exception queue
• Rejection
• Resubmission request
• Escalation
• Retry
• Dead-letter handling

The decision should be rule-based, auditable, and visible.

6. Human Review

Reviewers use:

• Blazor
• Power Apps
• Existing internal applications
• Custom .NET web applications
• Workflow approval screens

The review interface should show:

• Original document
• Extracted fields
• Confidence scores
• Validation failures
• Suggested corrections
• Related records
• Audit history
• Approval and escalation options

7. Exception Handling

Exceptions are categorized, assigned, tracked, and resolved.

SQL Server stores:

• Exception type
• Reason
• Assigned team
• Priority
• SLA
• Status
• Resolution notes
• Reviewer actions
• Escalation history

8. Downstream Integration

Validated data is sent to:

• ERP
• CRM
• Accounting
• Procurement
• HR
• Claims systems
• Case management
• Compliance systems
• SQL Server databases
• Data warehouses
• Reporting systems

.NET services, Logic Apps, Power Automate, APIs, or integration platforms may handle this depending on complexity.

9. Audit and Reporting

Every major event is logged.

Dashboards can report:

• Processing volume
• Straight-through processing rate
• Exception rate
• Validation failure rate
• Human review time
• Queue aging
• Retry count
• Downstream rejection rate
• Cost per document
• Audit completeness

This is how the organization manages IDP as an operational business system.

Power Automate vs .NET: Where Should the Logic Go?

This is one of the most important design decisions.

Power Automate is useful.

But not every rule belongs in Power Automate.

.NET is powerful.

But not every notification or approval needs custom code.

A practical decision guide:

Requirement	Better Fit
Simple approval email	Power Automate
Notify reviewer in Teams	Power Automate
Move file from SharePoint	Power Automate
Basic connector-based workflow	Power Automate
Complex validation rules	.NET
High-volume queue processing	.NET
Retry and dead-letter logic	.NET or Azure integration patterns
Custom business rules	.NET
Unit-tested logic	.NET
Complex ERP integration	.NET or Logic Apps, depending on context
Long-running stateful document processing	SQL Server + .NET
Business-user-maintained routing	Power Automate, if simple
Enterprise integration orchestration	Logic Apps
Custom reviewer UI	Blazor, Power Apps, or existing app

The main point is simple:

Do not turn Power Automate into spaghetti code, and do not custom-code workflows that a simple low-code approval flow can handle cleanly.

Use the right tool for the right responsibility.

SQL Server vs Document Storage

Another common design issue is document storage.

Should documents be stored in SQL Server?

Usually, not as the default.

SQL Server is excellent for structured state, metadata, extracted fields, validation results, exception records, and audit history.

But the original document files may be better stored in:

• Azure Blob Storage
• SharePoint
• OneDrive
• Existing document management systems
• Enterprise content management systems
• Secure file storage
• Records management platforms

The typical pattern is:

• Store the document file in an appropriate document storage location
• Store the file reference, metadata, status, extracted fields, and audit history in SQL Server

That gives the system both document access and structured queryability.

Azure AI Document Intelligence vs Custom .NET Extraction

Some teams ask whether they should use Azure AI Document Intelligence or build extraction logic in .NET.

The answer depends on the document type.

Use Azure AI Document Intelligence when:

• Documents are unstructured or semi-structured
• Layouts vary
• OCR is required
• Tables need to be detected
• Field locations vary
• AI-based extraction is beneficial
• Prebuilt or custom document models are appropriate

Use .NET extraction when:

• The input is already structured
• The file format is predictable
• Rules are deterministic
• The document is generated by a known system
• Parsing can be done cheaply and reliably
• AI would be overkill or too expensive

For example:

• A scanned vendor invoice may need Azure AI Document Intelligence.
• A structured XML, JSON, CSV, or EDI document may not.
• A machine-generated PDF with predictable embedded text may be handled by .NET libraries.
• A messy scanned form may need AI extraction.

The cost-conscious approach is not “use AI for everything.”

The cost-conscious approach is:

Use AI where AI is needed, and use deterministic software where deterministic software is better.

Human Review: Blazor, Power Apps, or Existing Systems?

Human review is a critical part of production IDP.

The question is where to build it.

Blazor

Blazor is a good fit when the organization wants a custom .NET web application with strong control over UI, business logic, security, data access, and integration.

Use Blazor when:

• The review workflow is custom
• Field-level review matters
• SQL Server integration is important
• The UI needs to be tailored
• The team has .NET skills
• The system needs long-term maintainability
• Role-based review workflows are complex

Power Apps

Power Apps can be a good fit for simpler review workflows, especially when the organization is already invested in Microsoft 365 and Power Platform.

Use Power Apps when:

• The review workflow is relatively simple
• Business users need rapid iteration
• The data model is manageable
• The organization already supports Power Platform governance
• The workflow fits within licensing and platform constraints

Existing Systems

Sometimes the best review interface is the system employees already use.

Use an existing internal application when:

• Users already work inside that system
• Document review is part of an existing process
• Adding IDP fields to the current workflow is cleaner than creating a new application
• Security and permissions already exist there
• Adoption is easier if the workflow stays familiar

The monthly plan specifically notes that human review can be handled with Blazor, Power Apps, or existing systems.

That is the right framing.

The best review interface depends on process complexity, user behavior, licensing, governance, and maintainability.

Security, Governance, DevOps, and Legal Still Matter

Production IDP is not just an AI and workflow project.

It also needs enterprise controls.

That includes:

• Identity and access management
• Role-based permissions
• Data retention rules
• Document retention rules
• Encryption
• PII handling
• Audit logging
• Approval authority
• Segregation of duties
• Environment separation
• CI/CD
• Testing
• Monitoring
• Incident response
• Legal review
• Compliance requirements
• Records management

This is why the Week 4 content plan includes infrastructure, security, DevOps, and legal as part of enterprise IDP implementation.

Those are not afterthoughts.

If the IDP system touches financial, legal, employee, customer, healthcare, government, or regulated documents, these issues become central.

Common Architecture Mistakes in Microsoft Enterprise IDP

Mistake 1: Treating Azure AI Document Intelligence as the whole system

It is the extraction layer.

It is not the entire enterprise workflow.

Mistake 2: Putting too much logic into Power Automate

Power Automate is useful, but complex rules, high-volume processing, and testable business logic often belong in .NET.

Mistake 3: Ignoring SQL Server

Production IDP needs state, auditability, validation history, exception tracking, and reporting.

SQL Server is often the natural home for that.

Mistake 4: Underusing .NET

Microsoft-centric organizations often already have .NET developers who understand enterprise applications.

Use that strength.

Mistake 5: Skipping human review design

Review workflows should be designed intentionally.

Do not treat human review as a temporary failure path.

Mistake 6: Forgetting exception ownership

Exception queues need owners, priorities, SLAs, and escalation paths.

Mistake 7: Failing to track audit history from day one

Auditability is difficult to bolt on later.

Design it early.

Mistake 8: Overusing AI

AI is powerful, but not every step needs AI.

Use deterministic code for deterministic problems.

How to Choose the Right First Microsoft IDP Project

The best first IDP project is not necessarily the most impressive one.

It should be practical.

Look for a process with:

• High document volume
• Repetitive document types
• Clear business value
• Painful manual data entry
• Available sample documents
• Known validation rules
• Manageable compliance risk
• Supportive business users
• Clear exception ownership
• Reasonable integration requirements
• Measurable ROI

Avoid starting with the most complex, politically sensitive, heavily regulated, or poorly understood process.

A good first project should prove the IDP pattern.

Once the pattern works, it can be expanded.

Conclusion: Enterprise IDP Is a Microsoft Architecture Opportunity

Microsoft-centric organizations should not treat IDP as a standalone AI tool.

They should treat it as an enterprise architecture opportunity.

Azure AI Document Intelligence can extract candidate data from documents.

Power Automate and Logic Apps can help with workflow, approvals, notifications, and integration.

SQL Server can provide the control plane for job state, validation, exceptions, auditability, and reporting.

C# and .NET can provide the custom business logic, validation, integration, queue processing, APIs, review interfaces, and operational reliability that production systems require.

The real value comes from putting these pieces together correctly.

AI extracts the data.

SQL Server tracks the process.

.NET validates, enriches, integrates, and controls the logic.

Power Automate and Logic Apps route work where they make sense.

Human review handles uncertainty.

Auditability proves what happened.

That is how Microsoft-centric enterprises should think about Intelligent Document Processing.

Not as OCR.

Not as a demo.

Not as one magic platform.

But as a practical, production-ready architecture for turning unstructured documents into trusted, validated, workflow-ready business data.

Want More?

Check out our IDP hub for much more information about reducing your document work and IDP

Frequently Asked Questions
