A Vertical Slice Through Enterprise AI Architecture: What Lives Beneath the Bot

A Copilot bot is a front door.

It is not the building.

That distinction matters because many organizations are still treating the visible AI interface as if it were the whole enterprise AI system.

They see a chatbot. They see a Copilot extension. They see an agent. They see a Teams bot. They see a Power App. They see a demo where a user asks a question and receives an answer.

Then they assume they have built enterprise AI architecture.

They have not.

They have built an interface.

Enterprise AI is wider and deeper than a bot connected to a model.

The real architecture lives beneath the visible layer. It includes business architecture, capability definition, unit task decomposition, input and output contracts, validation, security context, complexity decisions, execution routing, approved executors, testing, logging, monitoring, governance, human review, and rollback.

That depth is not bureaucracy.

It is how enterprises make AI dependable, reusable, testable, governable, observable, and resilient to change.

The Bot Is Only the Visible Entry Point

Most AI demos are built around the visible interaction:

User → Bot → Model → Response

That is useful as a demonstration pattern.

It is not sufficient as an enterprise architecture pattern.

In production, the bot is only one possible entry point into a broader system.

• Microsoft Copilot
• a chatbot
• a Teams bot
• a Power App
• a web application
• a workflow
• an API
• an AI agent
• a background process
• an internal line-of-business application

Those interfaces matter.

But they should not own the enterprise’s core AI logic.

They should consume governed capabilities underneath the interface.

That is where the vertical slice begins.

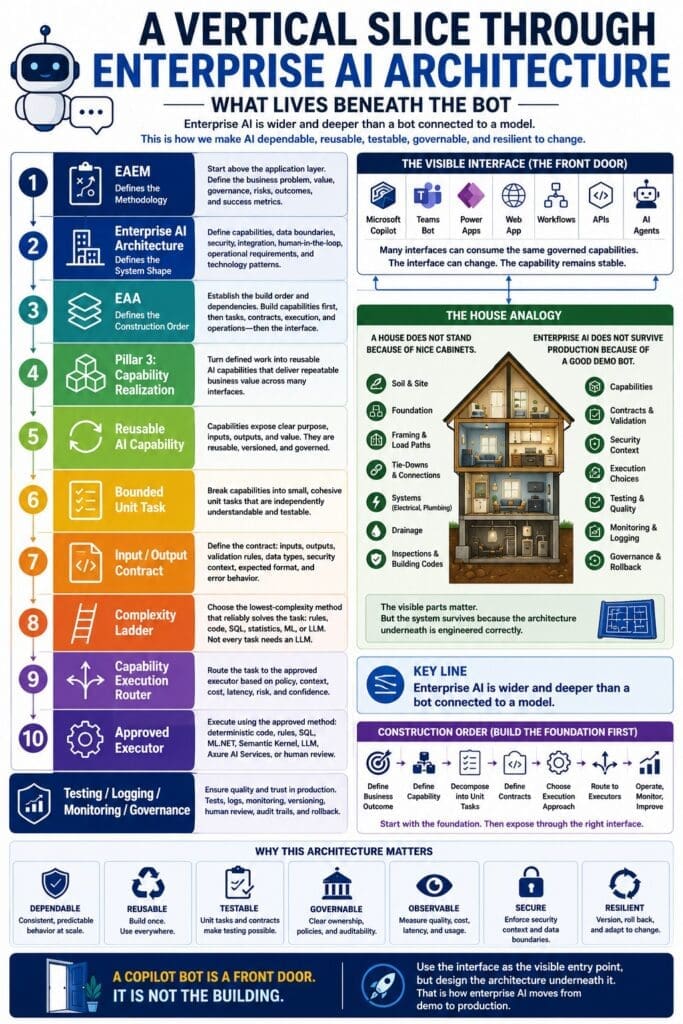

The Vertical Slice Model

A serious enterprise AI system has layers.

One useful way to think about it is this:

EAEM → Enterprise AI Architecture → Pillar 3: Capability Realization → Reusable AI Capability → Bounded Unit Task → Input / Output Contract → Complexity Ladder → Capability Execution Router → Approved Executor → Testing / Logging / Monitoring / Governance

This model is not about making AI complicated.

The complexity already exists.

The model makes that complexity visible, structured, testable, and governable.

Without architecture, the complexity gets hidden inside prompts, connectors, workflows, agent instructions, model choices, and disconnected departmental AI apps.

That is how enterprises create AI sprawl.

The better approach is to expose the layers clearly.

Layer 1: EAEM Defines the Methodology

Enterprise AI does not start with a chatbot.

It starts with a methodology for deciding what should be built, why it should be built, who owns it, how it creates value, and how it fits into the enterprise.

That is the role of EAEM: the Enterprise AI Engineering Methodology.

EAEM is the thinking process above the application layer.

It asks questions such as:

• What business problem are we solving?
• Who owns the outcome?
• What measurable value should the capability create?
• What process, decision, workflow, or knowledge task is being improved?
• What risks must be controlled?
• What governance model is required?
• What level of automation is appropriate?
• Where should humans remain in the loop?
• What does production readiness require?

This matters because many AI initiatives start too low.

They begin with: “Can we build a bot for this?”

The better starting point is: “What enterprise capability should exist, and how should it be engineered?”

That is a different question. It produces a different architecture.

Layer 2: Enterprise AI Architecture Defines the System Shape

Enterprise AI Architecture translates methodology into system design.

It defines the structure of the AI-enabled enterprise system.

• business capabilities
• data access boundaries
• security context
• application integration
• service boundaries
• AI execution patterns
• human review points
• governance controls
• operational requirements
• observability requirements
• testing strategy
• deployment and rollback strategy

This is where the enterprise avoids the shallow pattern of connecting every interface directly to a model.

Instead of this: User → Bot → LLM

The architecture becomes: User → Interface → Capability → Unit Task → Contract → Router → Executor → Operations

The first pattern may create a demo. The second pattern can support production.

Layer 3: EAA Defines the Construction Order

Enterprise AI Architecture is the system shape.

EAA — Enterprise AI Architecture in a more construction-oriented sense — defines the build order and dependency structure.

In plain English: do not start by building the bot.

Start by defining the business capability. Then define the unit tasks. Then define contracts. Then define execution choices. Then define routing. Then define approved executors. Then define testing, logging, monitoring, governance, and rollback.

Only then should the interface become the visible entry point.

That order matters.

If the team starts with the interface, business logic tends to migrate into the interface.

The chatbot starts owning rules. The Power App starts owning exceptions. The Copilot prompt starts owning policy interpretation. The workflow starts owning approval behavior. The agent starts owning orchestration without enough boundaries.

That is how architecture debt is created.

The better construction order keeps business capability beneath the interface.

Layer 4: Pillar 3 Turns Defined Work into Reusable Capabilities

Pillar 3 is Capability Realization.

This is where abstract business needs become reusable AI-enabled capabilities.

A capability is not just a prompt.

A capability is a governed enterprise function that performs useful work through a stable contract.

Examples include:

• SummarizeDocument
• ClassifyTicket
• ExtractInvoiceData
• ReviewContractClause
• GenerateCustomerResponse
• RouteServiceRequest
• DetectComplianceRisk
• ScoreProjectRisk
• ValidateClaim
• RecommendNextAction
• ApproveInvoice
• AnswerFromApprovedKnowledge
• EscalateForHumanReview

The key word is reusable.

A capability should not be trapped inside one chatbot, one Power App, one Copilot extension, or one departmental workflow.

A capability should be callable from multiple interfaces.

That is how the enterprise avoids rebuilding the same AI logic repeatedly across the organization.

Layer 5: Capabilities Expose Bounded Unit Tasks

A reusable capability is still too large to engineer as one vague AI behavior.

It needs to be decomposed into bounded unit tasks.

For example, an invoice approval capability may include tasks such as:

• extract invoice fields
• validate required fields
• verify vendor
• compare invoice to purchase order
• check approval threshold
• detect exceptions
• classify risk
• generate explanation
• route for review
• log decision

Each task should be independently understandable. Each task should have a purpose. Each task should have expected inputs. Each task should have expected outputs. Each task should be testable.

This is where serious AI engineering begins.

The unit task is the real design point.

Not the chatbot. Not the model. Not the prompt. The unit task.

Layer 6: Unit Tasks Need Contracts

Every bounded unit task needs a contract.

A contract defines what the task receives, what it returns, what validation is required, what security context applies, and what successful execution looks like.

A contract may include:

• input fields
• output fields
• required values
• optional values
• validation rules
• data types
• security context
• user role
• tenant context
• confidence score
• error behavior
• escalation rules
• audit requirements
• expected response format

This is especially important for AI-enabled systems because AI output can be variable.

The contract creates structure.

For example, a task called ClassifySupportTicket should not simply return a paragraph of text.

It may need to return structured output: category, subcategory, confidence score, priority, recommended routing queue, escalation flag, explanation, model or executor used, timestamp, and decision ID.

That structure makes the result easier to validate, log, test, route, audit, and reuse.

Without contracts, AI behavior becomes harder to control.

Layer 7: Contracts Need Validation and Security Context

A contract is not only about data shape.

It is also about control.

Enterprise AI systems must understand who is asking, what they are allowed to access, what data can be used, and what output is permissible.

That means contracts need security context.

• Who is the user?
• What role do they have?
• What department are they in?
• What tenant or business unit do they belong to?
• What data classification applies?
• What documents are they allowed to retrieve?
• What actions are they allowed to trigger?
• What outputs require redaction?
• What results require human review?

This is where many shallow AI systems fail.

They treat the model call as the important part.

But in an enterprise, authorization and data boundaries are just as important as the model response.

An AI assistant that gives the right answer to the wrong person is not a success.

It is a security failure.

Layer 8: Unit Tasks Need Complexity Decisions

Not every unit task requires an LLM.

This is one of the most important principles in enterprise AI architecture.

Each unit task should be solved using the lowest-complexity method that reliably meets the business requirement.

Some tasks require deterministic code. Some require business rules. Some require SQL. Some require statistics. Some require optimization. Some require vector search. Some require ML.NET. Some require an LLM. Some require Azure AI Services. Some require human review.

The architecture should make that decision explicit.

• Checking whether invoice amount exceeds $10,000 should probably be a rule.
• Extracting fields from a scanned invoice may use Azure Document Intelligence.
• Predicting customer churn may use statistics or ML.NET.
• Summarizing a long contract may use an LLM.
• Finding similar documents may use embeddings and vector search.
• Approving a high-risk legal exception may require human review.

Using an LLM for every task is not advanced architecture.

It is lazy architecture.

The question is not: “Can AI do this?”

The better question is: “What is the lowest-complexity execution method that reliably solves this unit task?”

Layer 9: Execution Should Be Routed to Approved Executors

Once unit tasks have complexity decisions, the system needs a controlled way to execute them.

That is the role of the Capability Execution Router.

A basic model router chooses between models.

A capability execution router is broader.

It chooses the approved execution method for a unit task.

Approved executors may include:

• C# deterministic logic
• business rules
• SQL queries
• statistics
• optimization models
• vector search
• ML.NET models
• Semantic Kernel orchestration
• LLM calls
• Azure AI Services
• human review

The consuming interface should not need to know which executor performs the task.

The interface should call the capability.

The capability should route execution according to policy, context, cost, latency, confidence, risk, and task type.

This protects the enterprise from hardwiring every app directly to a model, vendor, prompt, or implementation detail.

Layer 10: Production Requires Operations

A demo ends when the bot responds.

A production system begins there.

Enterprise AI requires operational discipline.

• benchmark tests
• regression tests
• prompt versioning
• model versioning
• executor versioning
• cost monitoring
• latency monitoring
• quality scoring
• failure tracking
• human override tracking
• escalation monitoring
• security logging
• audit trails
• shadow mode
• controlled rollout
• rollback

This is not optional if the AI system affects real business processes.

Models change. Prompts change. Business rules change. Vendor behavior changes. Costs change. Data changes. Regulations change. User behavior changes.

A production-grade AI architecture needs to survive that change.

That is why testing, logging, monitoring, governance, and rollback belong in the architecture from the beginning.

The House Analogy

A house does not stand because someone picked nice cabinets.

Cabinets matter. Paint matters. Windows matter. Flooring matters. The visible parts matter.

But the house stands because of the engineering underneath:

• soil conditions
• drainage
• foundation
• framing
• load paths
• roof tie-downs
• electrical systems
• plumbing
• inspections
• building codes

Enterprise AI works the same way.

The visible interface is not the whole system.

The Copilot bot may be the front door. The chatbot may be the living room. The Power App may be the hallway. The agent may be the automation layer.

But the system survives production because of the architecture underneath it.

If the foundation is weak, the visible interface does not save the system.

A Microsoft-Centric View of the Vertical Slice

For Microsoft-oriented organizations, this vertical slice can map naturally to familiar technologies.

At the interface layer:

• Microsoft Copilot
• Teams bots
• Power Apps
• Blazor applications
• ASP.NET Core applications
• workflow tools
• internal APIs

At the capability layer:

• ASP.NET Core Web API
• domain services
• application services
• reusable capability endpoints

At the task and contract layer:

• C# models
• DTOs
• validation rules
• structured outputs
• authorization policies
• schema validation

At the execution layer:

• C# deterministic logic
• SQL Server
• business rules
• ML.NET
• Semantic Kernel
• Azure OpenAI
• Azure AI Services
• vector search
• human review workflows

At the operations layer:

• Application Insights
• Azure Monitor
• SQL audit logs
• evaluation datasets
• regression tests
• cost tracking
• deployment pipelines
• feature flags
• shadow mode
• rollback procedures

This is not about using Microsoft technology for everything.

It is about using an architecture where the interface does not own the intelligence and the model does not become the system.

The enterprise capability is the stable boundary.

The execution method can evolve underneath it.

Why This Depth Is Not Bureaucracy

Some teams will look at the vertical slice and say: “That is too much architecture.”

But the complexity already exists.

The only choice is whether the complexity is managed or hidden.

Hidden complexity appears as:

• undocumented prompts
• duplicated rules
• inconsistent outputs
• fragile integrations
• unclear ownership
• untested model behavior
• weak logging
• missing audit trails
• uncontrolled cost growth
• scattered security assumptions
• painful migration

Managed complexity appears as:

• defined capabilities
• bounded tasks
• contracts
• validation
• security context
• approved executors
• testing
• logging
• monitoring
• governance
• rollback

That is not bureaucracy.

That is engineering.

The Vertical Slice in Plain English

The vertical slice can be summarized this way:

Start with the business problem.

Define the methodology.

Shape the enterprise AI architecture.

Turn the work into reusable capabilities.

Break each capability into bounded unit tasks.

Define contracts for each task.

Validate inputs and outputs.

Include security context.

Choose the lowest-complexity execution method that works.

Route execution to approved executors.

Test everything.

Log everything important.

Monitor quality, cost, latency, and failures.

Govern changes.

Support human review.

Prepare for rollback.

Then expose the capability through the right interface.

That interface may be a Copilot bot.

But the bot is only the front door.

Final Thought

Enterprise AI is wider and deeper than a bot connected to a model.

A good demo may show the visible interface.

A production system needs the architecture underneath it.

The interface is where users enter.

The capability is where business value is delivered.

The unit task is where engineering decisions happen.

The contract is where structure is enforced.

The router is where execution is controlled.

The executor is where work gets done.

The operations layer is where the system survives change.

Use the interface as the visible entry point.

But design the architecture underneath it.

That is how enterprise AI moves from demo to production.

Frequently Asked Questions
